3D Staircase Generator

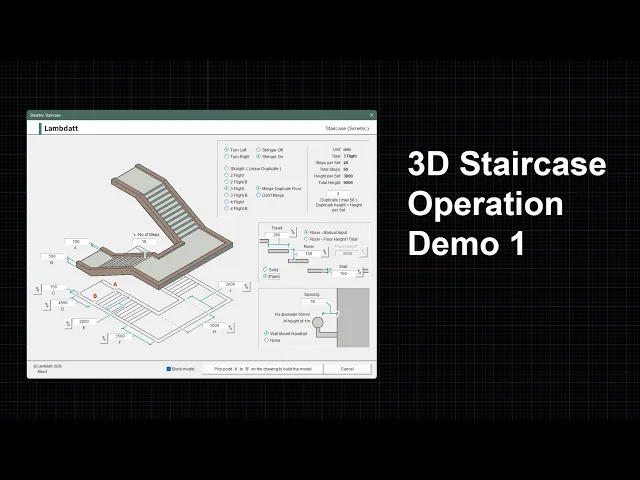

Video 1: Basic operation demonstration.
Purpose and Highlights:
This is an automatic 3D staircase modeling tool. Since the tool is built around symmetry, you only need to input data for up to 2 flight to generate a staircase with up to 4 flight.
The tool also provides a multi-floor repetition option, making it much easier to draw staircase connections.
Key Features:
7 staircase scheme options.
2 tread style options.
Automatic Wall handrails installed.
Automatic Stringers installed.
Automatic multi-floor connections.
Automatic calculation of riser heights.
Automatic Layer configuration.
Packs the entire Staircase model into a Block.
Real-time dashed auxiliary lines to assist with alignment and direction (works in both 2D and 3D views)
Automatically adapts to metric or imperial units

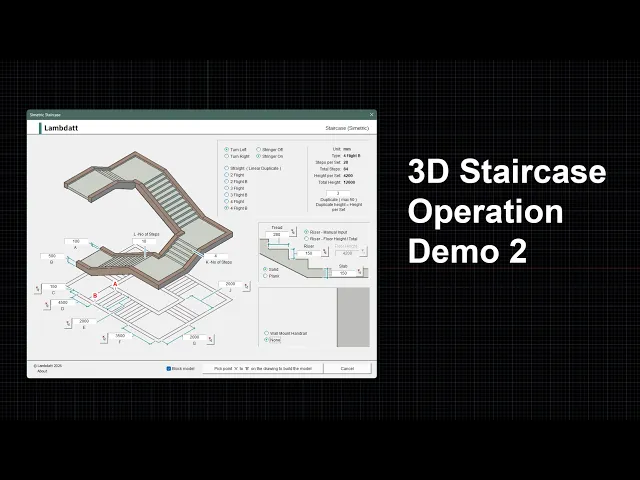

Video 2: Demonstration of multi-floor setting, adding Wall handrails, Stringers, Tread styles, and other operations.
Multi-floor repetition:
Compared to using Copy or Array command, modelling with the multi-floor repetition option is much faster and eliminates the need for manual corrections at the connection points.
Except for Scheme 1, the other 6 schemes all provide turning direction options.
Maximum 50 floors duplicate.
Tips:
Although certain parameter values in this tool are limited to a reasonable range, entering values that exceed logical limits may still produce strange results.
For example, using an extremely small number of steps while enabling the multi-floor repetition option will create an odd staircase with insufficient headroom.
If the staircase dimensions and number of floors are exactly the same, once the Block model is created, you can reuse it by using Copy or Mirror, avoiding the need to generate many identical models.
