Road Marking
Generator

Purpose and Usage:

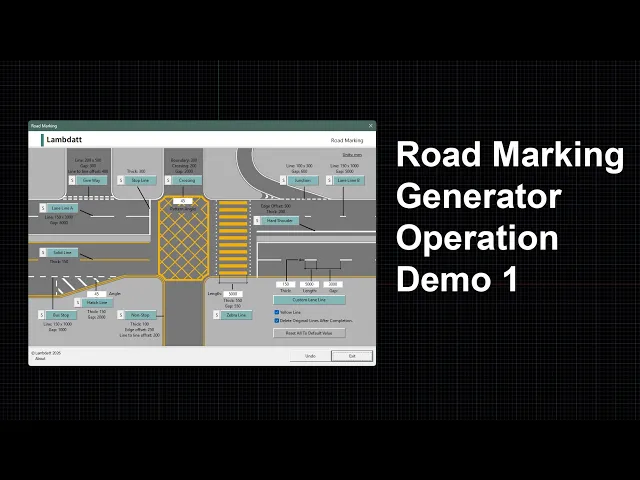

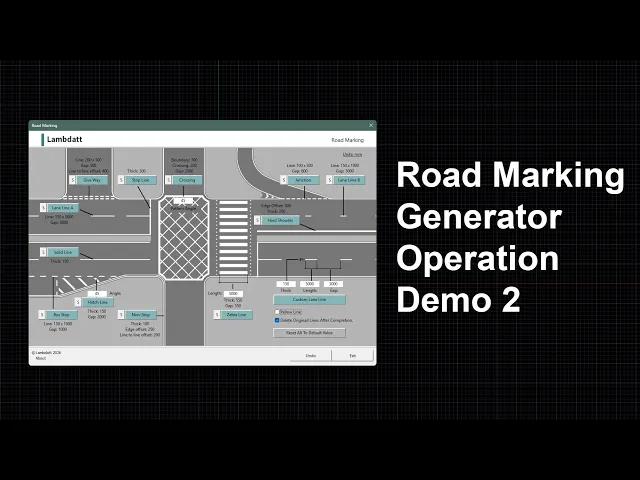

• Road Marking tool is an automatic road marking generation tool designed for AutoCAD. It can quickly convert a line into standard road markings.







  Key Features:




  • Supports Line, Arc, Polyline, and Circle as base geometry

  • Crossing (zebra crossings) and Hatch Lines — these must be based on a Closed Polyline.

  • Each marking type supports flexible size adjustment, allowing easy customization to meet different project requirements.

  • Automatically creates and manages two dedicated layers: RoadMark_White and RoadMark_Yellow.

  • Automatically places the markings on the correct layer based on the color of the original selected object

  • Press R after generation to reverse the starting point of the marking
