3D Louver Generator

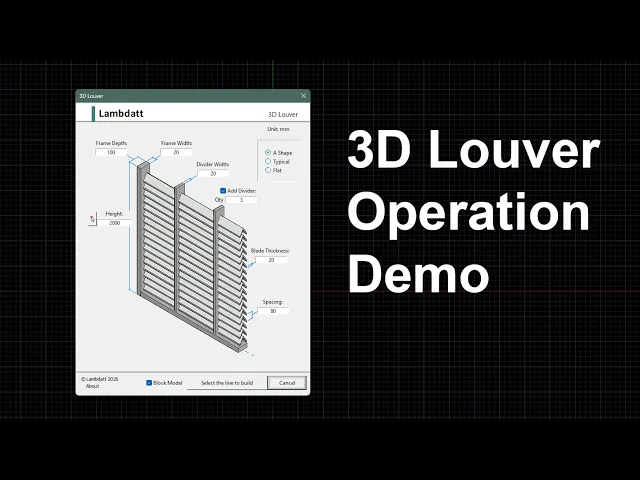

Video 1: Operation demonstration.
Purpose and Highlights:
Louver Generator is a powerful yet easy-to-use AutoLISP tool for automatically creating 3D louvers (blinds) in AutoCAD.
With a clean and simple interface, you only need to provide a small amount of input data, and the tool will automatically generate the complete louver model.
Key Features:
Three common louver styles.
Additional divider frame option.
Pick 2 Points function for quick height measurement and input.
Option to pack the entire louver assembly into a Block.
Support for Line, Polyline, and Arc guide lines.
Automatic warning system for invalid values or conflicting settings.
Flip/Reverse function for easy correction of blade direction after generation.
Usage:
Simply draw a guide line (supported types: Line, Open Polyline, or Arc) at the desired louver position. Then set the height and other parameters. Once you select the guide line, the louver will be generated automatically.
Pricing preview
Important Note Regarding Windows Security Alert (SmartScreen):
When running the installer, Windows SmartScreen may show a blue warning window stating "Windows protected your PC" with Unknown Publisher.
This is a standard security prompt for newly released software that does not yet have a corporate digital signature. Our software is 100% safe, verified, and clean of any viruses or malware.
